| CLW5020XLC4 Model technical parameters | |||
| Name: | CLW5020XLC4 | Exterior size(mm): | 4380×1580×2390 |
| Chassis: | SC1026DAN4 | Container size(mm): | 2550×1410×1490 |
| Total weight :(kg) | 1850 | Approach angle/ Departure angle(° ) | 58/20 |
| Payload:(kg) | 550 | Front suspension/rear suspension(mm): | 480/1150 |
| Kerb Mass:(kg) | 1170(Kg) | Max Speed(km/h): | 90 |
| Chassis parameters | |||
| Chassis: | SC1026DAN4 | Axle weight: | 835/1015 |
| Number of axles: | 2 | Fuel Type: | Gasoline |
| Wheelbase(mm): | 2750 | Fronttread(mm): | 1280,1310 |
| Max people in cab: | 2 | Rear tread(mm): | 1290,1320 |
| Number of tires: | 4 | Number of spring axle: | -/5 |
| Tire Type: | 165/70R13LT,175R13LT | ||
| introduction: | 厢体顶部封闭,不可开启。 | ||
| Engine parameters | |||
| Type | Manufacturer | Displacement(ml) | Power(kw) |
| JL466Q1 | 重庆长安汽车股份有限公司 | 1012 | 50.7 |
| other parameters |
| Introduction: |

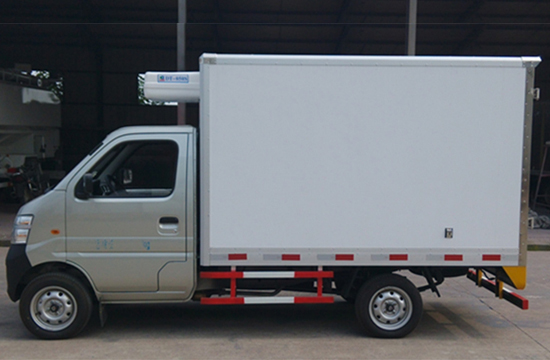

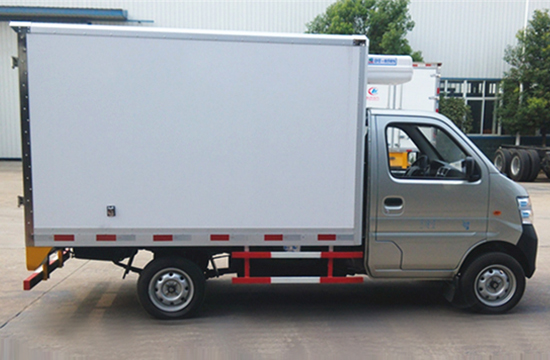

| more Picture: |
