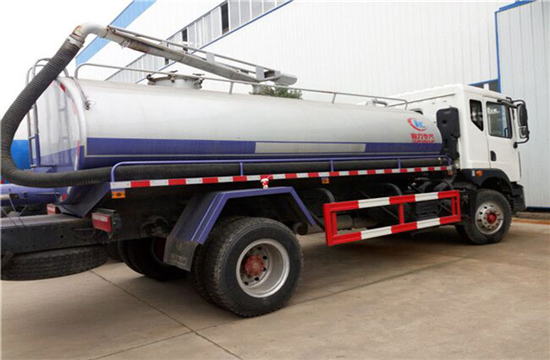

CLW5161GXED4 Model technical parameters | |||
Name: | CLW5161GXED4 | Exterior size(mm): | 7900,7400×2480×3100 |
Chassis: | DFA1160LJ10D4 | Container size(mm): | ×× |
Total weight :(kg) | 15790 | Approach angle/ Departure angle(° ) | 19/14,19/16 |
Payload:(kg) | 8375 | Front suspension/rear suspension(mm): | 1230/2170,1230/2220 |
Kerb Mass:(kg) | 7220(Kg) | Max Speed(km/h): | 100 |
Chassis parameters | |||
Chassis: | DFA1160LJ10D4 | Axle weight: | 5990/9800 |
Number of axles: | 2 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 3950,4500 | Fronttread(mm): | 1858,1949 |
Max people in cab: | 3 | Rear tread(mm): | 1806,1865 |
Number of tires: | 6 | Number of spring axle: | 8/10+7 |
Tire Type: | 9.00-20 16PR,9.00R20 16PR | ||
introduction: | 罐体有效容积:9.77立方米;运输介质为液态污物和粪便,密度:900千克/立方米。当轴距为4500mm时:椭圆罐体外形尺寸(长/长轴/短轴)(mm):4800/2200/1350,对应后悬(mm):2170;当轴距为3590mm时,椭圆罐体外形尺寸(长/长轴/短轴)(mm):4300/2300/1450,对应后悬(mm):2220。防护材料:Q235碳钢,连接方式:左右侧面与副梁及走道焊接连接,后下部防护与副梁采用焊接连接,后部防护断面尺寸(mm):150×50,后部防护离地高度(mm):400.ABS系统生产厂家/型号:焦作博瑞克控制技术有限公司/J ABS.文字喷图位置和车辆颜色可变化。 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
ISD160 43 ISD180 43 |
东风康明斯发动机有限公司 东风康明斯发动机有限公司 |
4500 4500 |
118 132 |
other parameters |
Introduction: |
more Picture: |
